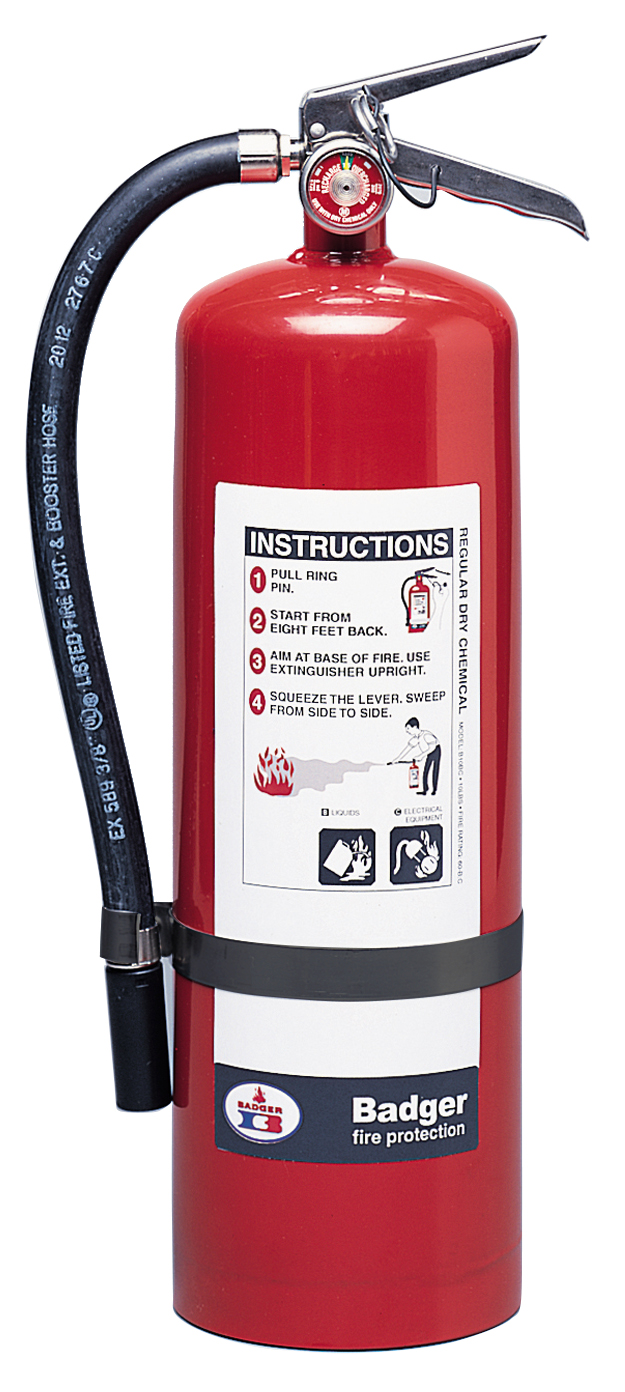

Badger Extra Regular Dry Chemical Stored Pressure Fire Extinguisher B10BC B10BC
Badger Extra Regular Dry Chemical Stored Pressure Fire Extinguisher B10BC
B10BC
Offers protection for Class B and C fires
Badger’s regular sodium bicarbonate dry chemical stored pressure fire extinguishers are specifically designed to meet the Class B and C needs of industrial and commercial premises. They are cost effective and offer excellent performance.
Suitable for use on class B and C fires. Can be mounted on flat vertical surfaces with wall hook supplied or with optional strap bracket.
-
Chrome plated brass valve
-
Stainless steel handle and lever
-
Steel cylinder and internal siphon tube
-
Six year warranty
-
Large loop stainless steel pull pins with tether
-
Heavy-duty hose with plated brass hex fitting
-
12 year periodic hydrostatic test interval
-
UL Listed and USCG Approved
-
Easy-to-read two-piece nameplates
Specifications
| MODEL / SKU: | B10BC |
| PART NUMBER : | 23781 |
| WHEEL TYPE : | n/a |
| CAPACITY (lb.): | 10 |
| CAPACITY (gal): | n/a |
| CAPACITY (kg): | 4.5 |
| CAPACITY (liter): | n/a |
| UL FIRE RATING: | 60-B:C |
| AGENT TYPE: | Regular (BC) |
| CYLINDER MATERIAL: | Steel |
| kidde: | Plated Brass |
| HANDLE/LEVER MATERIAL: | Stainless Steel |
| EXPELLANT: | Nitrogen |
| Operating Pressure @ 70° F: | 195 |
| TEMPERATURE RANGE (° F): | -40 to 120 |
| TEMPERATURE RANGE (° C): | -40.0 to 48.9 |
| AGENT FLOW RATE (lb/sec): | .56 |
| AGENT FLOW RATE (kg/sec): | .25 |
| NOM. DISCHARGE TIME (sec): | 18 |
| DISCHARGE RANGE (ft.): | 16.0 to 20.0 |
| DISCHARGE RANGE (m): | 4.9 to 6.1 |
| UNIT HEIGHT (in.): | 19.15 |
| UNIT HEIGHT (cm): | 48.6 |
| UNIT WIDTH (in.): | 8.13 |
| UNIT WIDTH (cm): | 20.7 |
| UNIT DEPTH (in.): | 5.25 |
| UNIT DEPTH (cm): | 13.3 |
| SHIPPING WEIGHT (lb.): | 18 |
| SHIPPING WEIGHT (kg): | 8.2 |
| USCG APPROVAL: | Type B:C Size-II |
| RECHARGE: | |
| Warranty: | 6 years |
| Hazaard Type A: | n/a |
| Hazaard Type B: | B |
| Hazaard Type C: | C |
| Hazaard Type D: | n/a |
| Hazaard Type K: | n/a |
This information is subject to change without notice. Badger Fire Protection disclaims any liability for any errors or misinterpretations of the information contained therein. Contact Badger Fire Protection for your local distributor for assistance.
