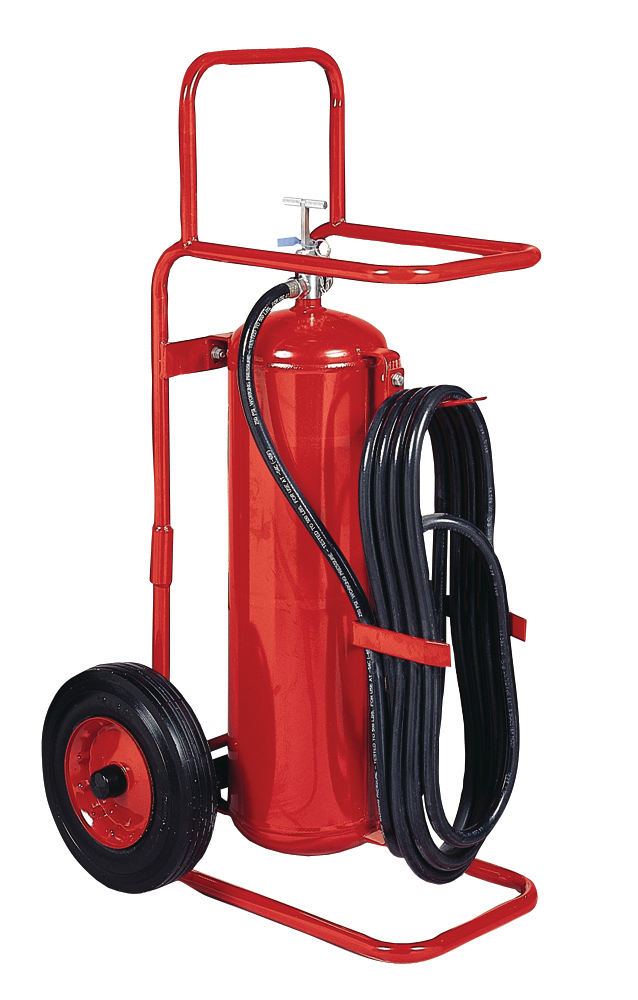

Badger Wheeled Portable Dry Chemical Stored Pressure Fire Extinguisher 50PB 50PB
Badger Wheeled Portable Dry Chemical Stored Pressure Fire Extinguisher 50PB
50PB
A quality wheeled fire extinguisher models designed for single person operation and to pass easily through standard doorways. Suitable for Class A, B and C fires.
Quality wheeled fire extinguisher models designed for single person operation and to pass easily through standard doorways. Badger stored pressure wheeled extinguishers are economical and ideal for addressing the many forms of high risk fire hazards sometimes found within commercial and industrial applications.
Badger dry chemical extinguishing agents contain the highest percentage of essential base ingredients found in the fire extinguisher industry. The “Multipurpose” agent models are suitable for use on Class A, B and C fires. The “Regular” and “Purple K” agent models are suitable for Class B and C fires.
-
Heavy-duty plated brass valves
-
12 and 16 inch semi-pneumatic rubber wheels
-
Heavy-duty swivels available
-
UL Listed and USCG Approved—Meets D.O.T. requirements
-
12 or 7 year periodic hydrostatic test interval per D.O.T.
-
Six year warranty
-
50 pound models equipped with 25’ hose length
-
150 pound models equipped with 50’ hose length
Specifications
| MODEL / SKU: | 50PB | |
| PART NUMBER : | 20180 | |
| WHEEL TYPE : | n/a | |
| CAPACITY (lb.): | 50 | |
| CAPACITY (gal): | n/a | |
| CAPACITY (kg): | 22.6 | |
| CAPACITY (liter): | n/a | |
| UL FIRE RATING: | 160-B:C | |
| AGENT TYPE: | Purple K | |
| CYLINDER MATERIAL: | Steel | |
| kidde: | Brass | |
| HANDLE/LEVER MATERIAL: | n/a | |
| EXPELLANT: | Nitrogen | |
| Operating Pressure @ 70° F: | 240 | |
| TEMPERATURE RANGE (° F): | -40 to 120 | |
| TEMPERATURE RANGE (° C): | -40.0 to 48.9 | |
| AGENT FLOW RATE (lb/sec): | 1.3 | |
| AGENT FLOW RATE (kg/sec): | .59 | |
| NOM. DISCHARGE TIME (sec): | 36 | |
| DISCHARGE RANGE (ft.): | 25 to 35 | |
| DISCHARGE RANGE (m): | 7.6 to 10.6 | |
| UNIT HEIGHT (in.): | 46.25 | |
| UNIT HEIGHT (cm): | 117.5 | |
| UNIT WIDTH (in.): | 23 | |
| UNIT WIDTH (cm): | 58.4 | |
| UNIT DEPTH (in.): | 23 | |
| UNIT DEPTH (cm): | 58.4 | |
| SHIPPING WEIGHT (lb.): | 140 | |
| SHIPPING WEIGHT (kg): | 63.5 | |
| USCG APPROVAL: | Type B:C Size V | |
| RECHARGE: | n/a | |
| Warranty: | 6 years | |
| Hazaard Type A: | n/a | |
| Hazaard Type B: | B | |
| Hazaard Type C: | C | |
| Hazaard Type D: | n/a | |
| Hazaard Type K: | n/a |
This information is subject to change without notice. Badger Fire Protection disclaims any liability for any errors or misinterpretations of the information contained therein. Contact Badger Fire Protection for your local distributor for assistance.
