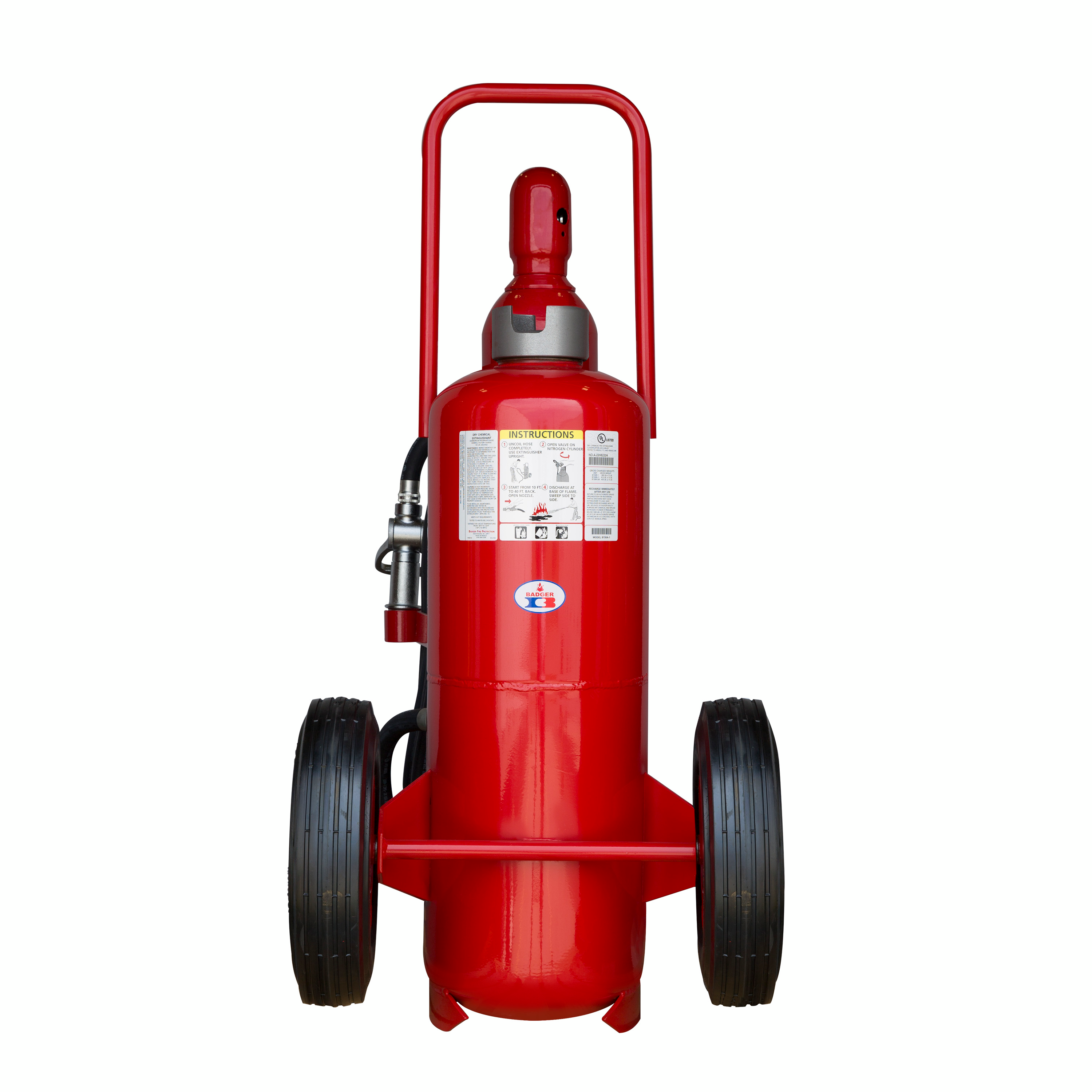

Badger Wheeled Portable Dry Chemical Regulated Fire Extinguisher B150A-1 B150A-1
Badger Wheeled Portable Dry Chemical Regulated Fire Extinguisher B150A-1
B150A-1
A constant-flow, Dry Chemical Regulated Fire Extinguisher, with a Multipurpose ABC (90% MAP) agent. Suitable for Class A, B and C fires.
Designed for single person operation and to pass easily through standard doorways. Badger regulated wheeled extinguishers are ideal for high risk fire hazards that dictate consistent agent discharge flow rates and ranges throughout a fire fighting evolution. Ideal for rugged industrial applications that desire quick and simple on-site equipment recharge capability.
Badger dry chemical extinguishing agents contain the highest percentage of essential base ingredients found in the fire extinguisher industry. The “Multipurpose” agent models are suitable for use on Class A, B andC fires. The “Regular” and “Purple K” agent models are suitable for Class B and C fires.
-
Heavy-duty cylinder activation valves
-
16 inch rubber or 36 inch steel wheels with rubber coating for spark reduction
-
Heavy-duty discharge nozzle
-
UL List de dna a pp devor steeM— D.O.T.requirements
-
12 year periodic hydrostatic test interval
-
Six year warranty
-
Equipped with 50’ hose length
Specifications
| MODEL / SKU: | B150A-1 | |
| PART NUMBER : | 19900 | |
| WHEEL TYPE : | 16-in Semi-Pneumatic Rubber Wheels | |
| CAPACITY (lb.): | 145 | |
| CAPACITY (gal): | n/a | |
| CAPACITY (kg): | 65.7 | |
| CAPACITY (liter): | 65.7 | |
| UL FIRE RATING: | 40-A:240-B:C | |
| AGENT TYPE: | Multipurpose ABC (90% MAP) | |
| CYLINDER MATERIAL: | Steel | |
| kidde: | Brass | |
| HANDLE/LEVER MATERIAL: | n/a | |
| EXPELLANT: | 110 cu. Ft n2 | |
| Operating Pressure @ 70° F: | 245 | |
| TEMPERATURE RANGE (° F): | -40 to 120 | |
| TEMPERATURE RANGE (° C): | -40.0 to 48.9 | |
| AGENT FLOW RATE (lb/sec): | 3.0 | |
| AGENT FLOW RATE (kg/sec): | 1.36 | |
| NOM. DISCHARGE TIME (sec): | 43+/- 3.0 | |
| DISCHARGE RANGE (ft.): | 25 to 35 | |
| DISCHARGE RANGE (m): | 7.6 to 10.6 | |
| UNIT HEIGHT (in.): | 52 | |
| UNIT HEIGHT (cm): | 132.1 | |
| UNIT WIDTH (in.): | 27 | |
| UNIT WIDTH (cm): | 68.6 | |
| UNIT DEPTH (in.): | 39 | |
| UNIT DEPTH (cm): | 99 | |
| SHIPPING WEIGHT (lb.): | 435 | |
| SHIPPING WEIGHT (kg): | 197 | |
| USCG APPROVAL: | n/a | |
| RECHARGE: | n/a | |
| Warranty: | 6 years | |
| Hazaard Type A: | A | |
| Hazaard Type B: | B | |
| Hazaard Type C: | C | |
| Hazaard Type D: | n/a | |
| Hazaard Type K: | n/a |
This information is subject to change without notice. Badger Fire Protection disclaims any liability for any errors or misinterpretations of the information contained therein. Contact Badger Fire Protection for your local distributor for assistance.
