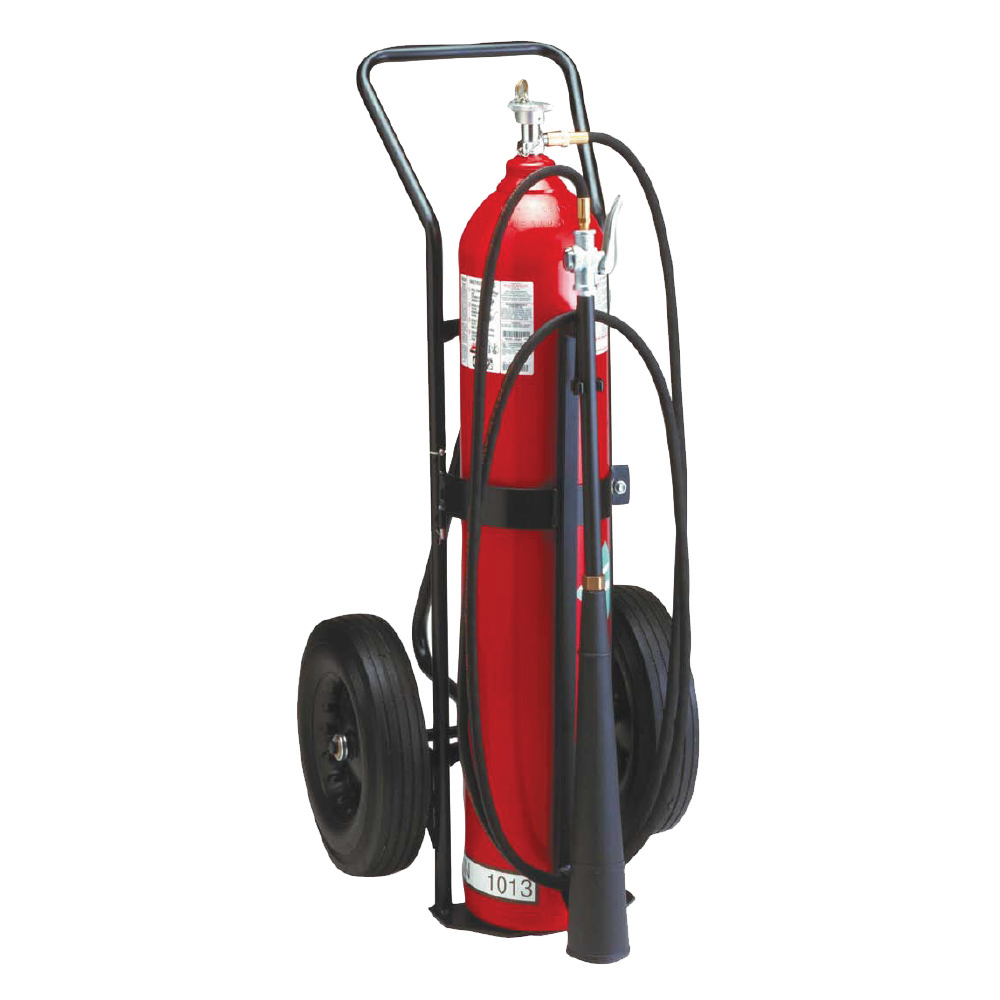

Badger Wheeled Portable Carbon Dioxide Self-Expelling Fire Extinguishers CD50-2 CD50-2
Badger Wheeled Portable Carbon Dioxide Self-Expelling Fire Extinguishers CD50-2
CD50-2
Effective for Class B and C fire protection
These quality wheeled fire extinguisher models are designed for single person use and operation. They are extremely versatile and ready to tackle flammable liquid and electrical equipment fire hazards. They are ideally suited for industrial applications where delicate equipment or processes require a clean extinguishing agent.
Carbon Dioxide is an effective and clean gaseous extinguishing agent that leaves no residue to clean up. These models are suitable for use on Class B and C fires.
-
Heavy-duty hand wheel cylinder activation valves
-
16 inch semi-pneumatic rubber wheels
-
Quick release discharge nozzle retainer
-
Heavy-duty industrial discharge valve and nozzle
-
UL Listed—Meets D.O.T. requirements
-
Five year periodic hydrostatic test interval
-
Six year warranty
-
CD-50 model equipped with 15’ hose length
-
CD-100 model equipped with 40’ hose length
Specifications
| MODEL / SKU: | CD50-2 | |
| PART NUMBER : | 22724 | |
| WHEEL TYPE : | 16-in Semi-Pneumatic Rubber Wheels | |
| CAPACITY (lb.): | 50 | |
| CAPACITY (gal): | n/a | |
| CAPACITY (kg): | 22.68 | |
| CAPACITY (liter): | n/a | |
| UL FIRE RATING: | 20-B:C | |
| AGENT TYPE: | Carbon Dioxide | |
| CYLINDER MATERIAL: | Steel | |
| kidde: | Brass | |
| HANDLE/LEVER MATERIAL: | n/a | |
| EXPELLANT: | Carbon Dioxide | |
| Operating Pressure @ 70° F: | 850 | |
| TEMPERATURE RANGE (° F): | -22 to 120 | |
| TEMPERATURE RANGE (° C): | -30 to 48.9 | |
| AGENT FLOW RATE (lb/sec): | n/a | |
| AGENT FLOW RATE (kg/sec): | n/a | |
| NOM. DISCHARGE TIME (sec): | 30 | |
| DISCHARGE RANGE (ft.): | 10.0 | |
| DISCHARGE RANGE (m): | 3.05 | |
| UNIT HEIGHT (in.): | 52 | |
| UNIT HEIGHT (cm): | 132.1 | |
| UNIT WIDTH (in.): | 21.5 | |
| UNIT WIDTH (cm): | 54.61 | |
| UNIT DEPTH (in.): | 33 | |
| UNIT DEPTH (cm): | 83.8 | |
| SHIPPING WEIGHT (lb.): | 271 | |
| SHIPPING WEIGHT (kg): | 122.9 | |
| USCG APPROVAL: | n/a | |
| RECHARGE: | n/a | |
| Warranty: | 6 years | |
| Hazaard Type A: | n/a | |
| Hazaard Type B: | B | |
| Hazaard Type C: | C | |
| Hazaard Type D: | n/a | |
| Hazaard Type K: | n/a |
This information is subject to change without notice. Badger Fire Protection disclaims any liability for any errors or misinterpretations of the information contained therein. Contact Badger Fire Protection for your local distributor for assistance.
