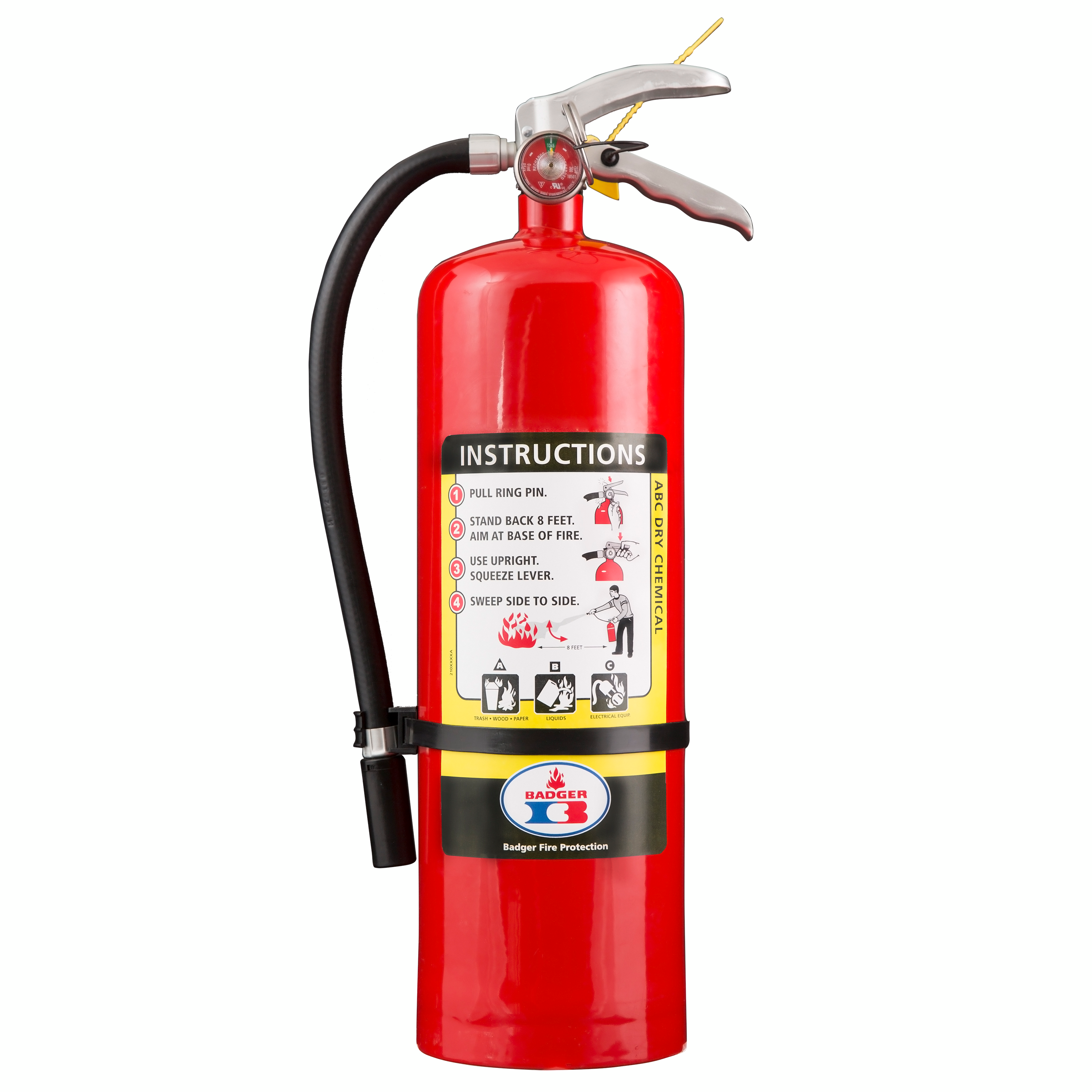

BADGER Standard ABC Multipurpose Dry Chemical Store Pressure Fire Extinguisher 10MB-8H 10MB-8H
BADGER Standard ABC Multipurpose Dry Chemical Store Pressure Fire Extinguisher 10MB-8H
10MB-8H
Suitable for Class A, B and C fires.
The Badger Standard multipurpose dry chemical line of fire extinguishers are economical and extremely versatile. They are ideal for tackling the majority of fire risks typically found in commercial and domestic applications.
Badger dry chemical extinguishing agent formulations contain the highest percentage of essential base ingredients found in the fire extinguisher industry. “Multipurpose” agent models are suitable for use on Class A, B and C fires.
Badger Standard models offer compliance and protection at a competitive price.
-
Multipurpose agent contains 90% M.A.P.
-
UL Listed and USCG Approved – Meets D.O.T. requirements
-
12 year periodic hydrostatic test interval
-
Six year warranty
-
Machined aluminum valves
-
Aluminum and plated steel handles
-
2.5, 5, 10 and 20 pound models available
Specifications
| MODEL / SKU: | 10MB-8H |
| PART NUMBER : | 22603 |
| WHEEL TYPE : | n/a |
| CAPACITY (lb.): | 10 |
| CAPACITY (gal): | n/a |
| CAPACITY (kg): | 4.5 |
| CAPACITY (liter): | n/a |
| UL FIRE RATING: | 4-A:80-B:C |
| AGENT TYPE: | Multipurpose ABC (90% MAP) |
| CYLINDER MATERIAL: | Steel |
| kidde: | Aluminum |
| HANDLE/LEVER MATERIAL: | Aluminum |
| EXPELLANT: | Nitrogen |
| Operating Pressure @ 70° F: | 195 |
| TEMPERATURE RANGE (° F): | -40 to 120 |
| TEMPERATURE RANGE (° C): | -40.0 to 48.9 |
| AGENT FLOW RATE (lb/sec): | .51 |
| AGENT FLOW RATE (kg/sec): | .23 |
| NOM. DISCHARGE TIME (sec): | 22 |
| DISCHARGE RANGE (ft.): | 16.0-20.0 |
| DISCHARGE RANGE (m): | 4.9 to 6.1 |
| UNIT HEIGHT (in.): | 18.94 |
| UNIT HEIGHT (cm): | 48.1 |
| UNIT WIDTH (in.): | 7.75 |
| UNIT WIDTH (cm): | 19.7 |
| UNIT DEPTH (in.): | 5.25 |
| UNIT DEPTH (cm): | 13.3 |
| SHIPPING WEIGHT (lb.): | 17 |
| SHIPPING WEIGHT (kg): | 7.7 |
| USCG APPROVAL: | Type A Size-II
Type B:C Size-II |
| RECHARGE: | |
| Warranty: | 6 years |
| Hazaard Type A: | A |
| Hazaard Type B: | B |
| Hazaard Type C: | C |
| Hazaard Type D: | n/a |
| Hazaard Type K: | n/a |
This information is subject to change without notice. Badger Fire Protection disclaims any liability for any errors or misinterpretations of the information contained therein. Contact Badger Fire Protection for your local distributor for assistance.
