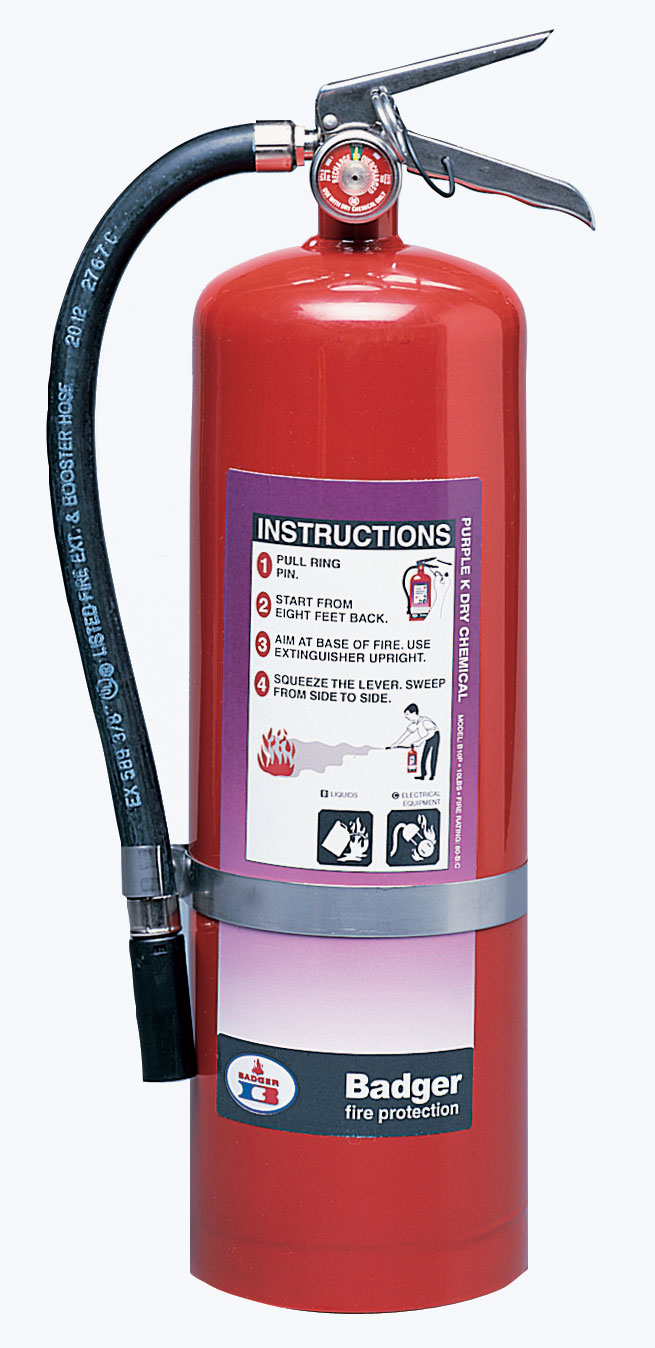

Badger Extra High Flow Fire Extinguisher B10P-1-HF B10P-1-HF
Badger Extra High Flow Fire Extinguisher B10P-1-HF
B10P-1-HF
The ultimate performance for Class B and C hazards.
The Badger Extra High Flow line of stored pressure fire extinguishers is the right choice for addressing real world fire situations found in commercial and industrial applications.
All Badger High Flow models have dry chemical agent discharge rates exceeding the minimum one pound per second recommendation of NFPA for properly addressing various Class B obstacle, pressure, gravity and three-dimensional types of fire burning situations.
Badger High Flow models provide ultimate performance and are the best fire fighting choice for potential hazard applications that process, transport, handle or store flammable Class B fuels.-
Premium quality dry chemical agents
-
Heavy duty chrome plated brass valves
-
Stainless steel handles and levers
-
Large loop stainless steel pull pins with tether
-
Steel cylinder and internal siphon tube
-
Plated brass hose couplings with hex connection fitting
-
Rugged heavy-duty agent discharge hose assemblies
-
UL Listed and USCG Approved—Meets D.O.T. requirements
-
12 year periodic hydrostatic test interval
-
Six year product warranty
-
Large easy to read two-piece nameplates and illustrations
-
Front operating instruction nameplate is replaceable
Specifications
| MODEL / SKU: | B10P-1-HF |
| PART NUMBER : | 21006159 |
| WHEEL TYPE : | n/a |
| CAPACITY (lb.): | 10 |
| CAPACITY (gal): | n/a |
| CAPACITY (kg): | 4.5 |
| CAPACITY (liter): | n/a |
| UL FIRE RATING: | 20-B:C |
| AGENT TYPE: | Purple K |
| CYLINDER MATERIAL: | Steel |
| kidde: | Plated Brass |
| HANDLE/LEVER MATERIAL: | Stainless Steel |
| EXPELLANT: | Nitrogen |
| Operating Pressure @ 70° F: | 195 |
| TEMPERATURE RANGE (° F): | -40 to 120 |
| TEMPERATURE RANGE (° C): | -40.0 to 48.9 |
| AGENT FLOW RATE (lb/sec): | 1.18 |
| AGENT FLOW RATE (kg/sec): | 0.54 |
| NOM. DISCHARGE TIME (sec): | 11 |
| DISCHARGE RANGE (ft.): | 10 to 25 |
| DISCHARGE RANGE (m): | 3 to 7.6 |
| UNIT HEIGHT (in.): | 19.13 |
| UNIT HEIGHT (cm): | 48.6 |
| UNIT WIDTH (in.): | 8.13 |
| UNIT WIDTH (cm): | 20.7 |
| UNIT DEPTH (in.): | 5.25 |
| UNIT DEPTH (cm): | 13.3 |
| SHIPPING WEIGHT (lb.): | 18 |
| SHIPPING WEIGHT (kg): | 8.16 |
| USCG APPROVAL: | Type B:C Size-II |
| RECHARGE: | |
| Warranty: | 6 years |
| Hazaard Type A: | n/a |
| Hazaard Type B: | B |
| Hazaard Type C: | C |
| Hazaard Type D: | n/a |
| Hazaard Type K: | n/a |
Badger High Flow dry chemical extinguisher models all meet or exceed NFPA-10 Class B special hazard fire protection recommendations and requirements for properly addressing pressure fires, three dimensional fires and obstacle fires by having agent discharge flow rates greater than one pound per second.
Reference: 2007 edition of NFPA-10 paragraphs 5.5.1.1.2 for “Pressure fire hazards,” 5.5.2 for “Three-dimensional hazards” and 5.5.4 (3) for “Obstacle hazards.”
This information is subject to change without notice. Badger Fire Protection disclaims any liability for any errors or misinterpretation of the information. Contact Badger Fire Protection for your local distributor for assistance.
