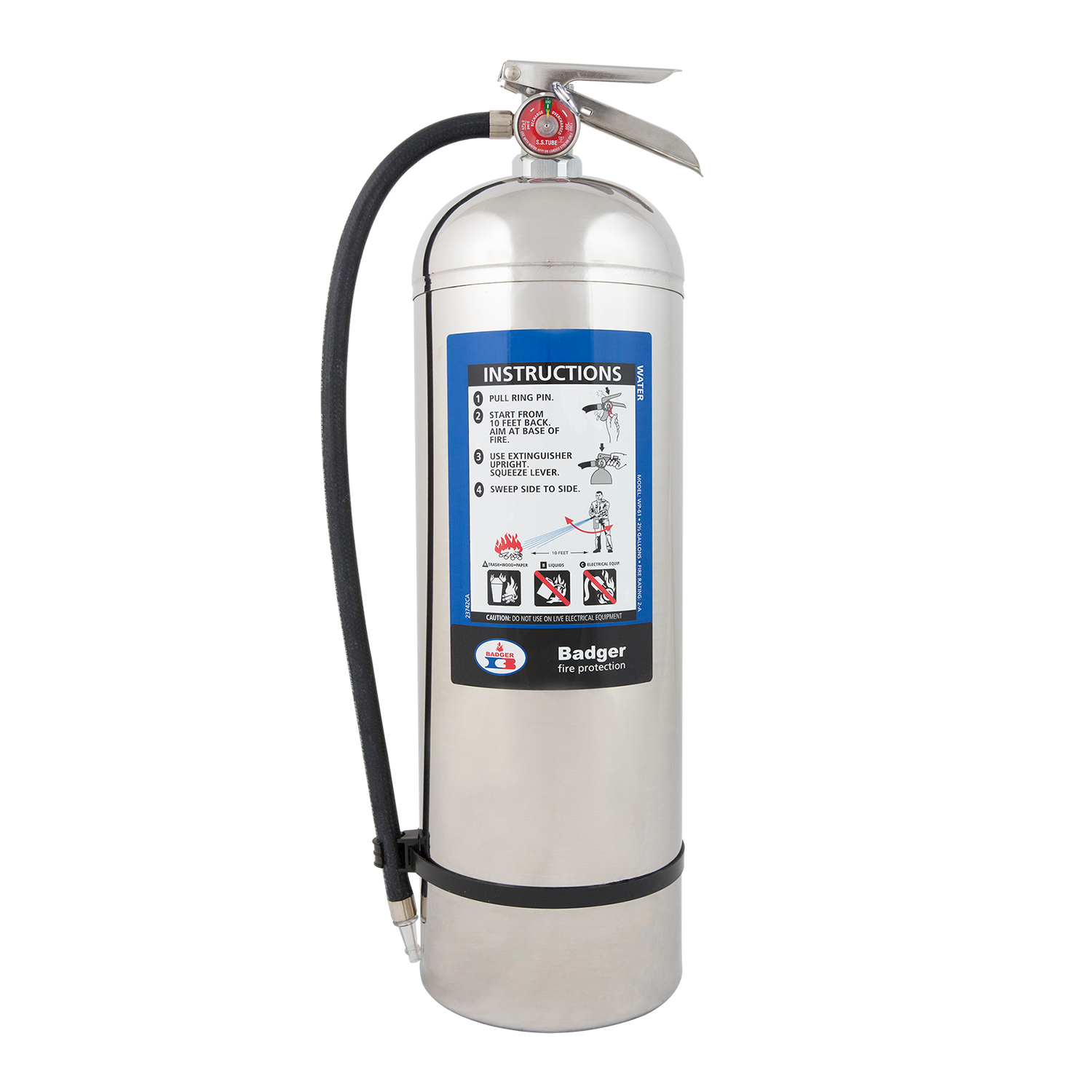

Badger Extra Water Stored Pressure Fire Extinguisher WP-61-2 WP-61-2
Badger Extra Water Stored Pressure Fire Extinguisher WP-61-2
WP-61-2
For commercial and industrial Class A fires.
Badger’s water extinguisher is ideal for Class A fires involving common combustibles such as trash, fabrics, wood and paper. Water is economical and easy to clean up.
The Badger model WP-61 water fire extinguisher has additionally been UL tested and listed as a “Loaded Stream” fire extinguisher. When properly charged using the Badger AC-40 potassium acetate loaded stream charge (P/N 00792) this extinguisher is approved for low temperature applications down to -40°F (-40° C).
For specific recharge instructions, refer to the nameplate and service manual (P/N 24642).
The time proven design of the Badger WP-61 Water fire extinguisher makes it extremely effective, simple to use, inexpensive and easy to recharge.
-
Heavy-duty chrome plated brass valves
-
Comfortable stainless steel handles and operating levers
-
Large loop stainless steel pull pins with retention tether
-
Hex valve collar tightening ring for easy recharge
-
UL listed—Meets D.O.T. requirements
-
Six year warranty
-
Full stainless steel cylinder and base
-
Easy-to-read two-piece nameplates
Specifications
| MODEL / SKU: | WP-61-2 |
| PART NUMBER : | 16888 |
| WHEEL TYPE : | n/a |
| CAPACITY (lb.): | n/a |
| CAPACITY (gal): | 2.5 |
| CAPACITY (kg): | n/a |
| CAPACITY (liter): | 9.46 |
| UL FIRE RATING: | 2-A |
| AGENT TYPE: | Water |
| CYLINDER MATERIAL: | Stainless Steel |
| kidde: | Plated Brass |
| HANDLE/LEVER MATERIAL: | Stainless Steel |
| EXPELLANT: | Nitrogen / Air |
| Operating Pressure @ 70° F: | 100 |
| TEMPERATURE RANGE (° F): | 33 to 120 |
| TEMPERATURE RANGE (° C): | 0.6 to 48.9 |
| AGENT FLOW RATE (lb/sec): | n/a |
| AGENT FLOW RATE (kg/sec): | n/a |
| NOM. DISCHARGE TIME (sec): | 55 |
| DISCHARGE RANGE (ft.): | 30.0 to 45.0 |
| DISCHARGE RANGE (m): | 9.1 to 13.7 |
| UNIT HEIGHT (in.): | 24.75 |
| UNIT HEIGHT (cm): | 62.9 |
| UNIT WIDTH (in.): | 8.75 |
| UNIT WIDTH (cm): | 22.2 |
| UNIT DEPTH (in.): | 7 |
| UNIT DEPTH (cm): | 17.8 |
| SHIPPING WEIGHT (lb.): | 8 |
| SHIPPING WEIGHT (kg): | 3.6 |
| USCG APPROVAL: | n/a |
| RECHARGE: | n/a |
| Warranty: | 6 years |
| Hazaard Type A: | A |
| Hazaard Type B: | n/a |
| Hazaard Type C: | n/a |
| Hazaard Type D: | n/a |
| Hazaard Type K: | n/a |
This information is subject to change without notice. Badger Fire Protection disclaims any liability for any errors or misinterpretations of the information contained therein. Contact Badger Fire Protection for your local distributor for assistance.
