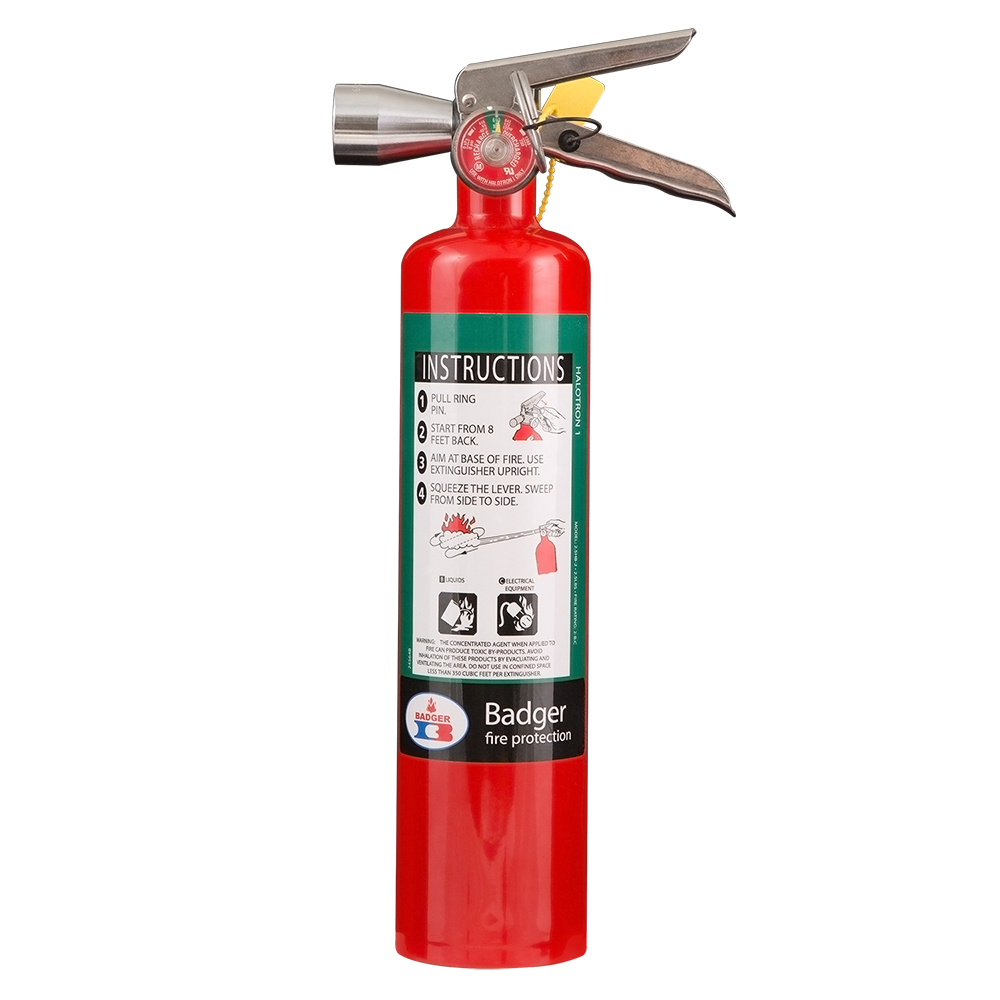

Badger Extra Halotron-1 Stored Pressure Fire Extinguishers 5 HB-2 5 HB-2
Badger Extra Halotron-1 Stored Pressure Fire Extinguishers 5 HB-2
5 HB-2
The most effective clean agent with Class A, B and C fire capability.
When experiencing delays, downtime and interruptions associated with extinguishing agent clean-up is simply not an option, Halotron-1 is the choice. These quality fire extinguishers contain an extremely versatile and effective multi-purpose clean extinguishing agent able to address most fire risks typically found in commercial and industrial applications. It is ideally suited for computer rooms, data storage, telecommunication, robotics or any high-tech industrial process that requires an effective clean agent having an extended discharge range.
Badger Extra Halotron-1 models are an environmentally acceptable Halon-1211 alternative. Larger sized models are suitable for use on Class A, B and C fires.
-
Chrome plated brass valves
-
Stainless steel handles and levers
-
Large, easy-to-pull stainless steel ring pin
-
Heavy-duty machined aluminum nozzles
-
Steel cylinder and internal siphon tube
-
UL Listed and USCG Approved—Meets D.O.T.requirements
-
12 year hydrostatic test intervals
Specifications
| MODEL / SKU: | 5 HB-2 |
| PART NUMBER : | 24567 |
| WHEEL TYPE : | n/a |
| CAPACITY (lb.): | 5 |
| CAPACITY (gal): | n/a |
| CAPACITY (kg): | 2.3 |
| CAPACITY (liter): | n/a |
| UL FIRE RATING: | 5-B:C |
| AGENT TYPE: | Halotron-1 |
| CYLINDER MATERIAL: | Steel |
| kidde: | Plated Brass |
| HANDLE/LEVER MATERIAL: | Stainless Steel |
| EXPELLANT: | Argon |
| Operating Pressure @ 70° F: | 100 |
| TEMPERATURE RANGE (° F): | -40 to 120 |
| TEMPERATURE RANGE (° C): | -40.0 to 48.9 |
| AGENT FLOW RATE (lb/sec): | .63 |
| AGENT FLOW RATE (kg/sec): | .29 |
| NOM. DISCHARGE TIME (sec): | 9 |
| DISCHARGE RANGE (ft.): | 9.0 to 15.0 |
| DISCHARGE RANGE (m): | 2.7 to 4.6 |
| UNIT HEIGHT (in.): | 15.25 |
| UNIT HEIGHT (cm): | 38.7 |
| UNIT WIDTH (in.): | 6.13 |
| UNIT WIDTH (cm): | 15.6 |
| UNIT DEPTH (in.): | 4.25 |
| UNIT DEPTH (cm): | 10.8 |
| SHIPPING WEIGHT (lb.): | 10.6 |
| SHIPPING WEIGHT (kg): | 4.8 |
| USCG APPROVAL: | Type B:C Size I |
| RECHARGE: | n/a |
| Warranty: | 6 years |
| Hazaard Type A: | n/a |
| Hazaard Type B: | B |
| Hazaard Type C: | C |
| Hazaard Type D: | n/a |
| Hazaard Type K: | n/a |
This information is subject to change without notice. Badger Fire Protection disclaims any liability for any errors or misinterpretations of the information contained therein. Contact Badger Fire Protection for your local distributor for assistance.
