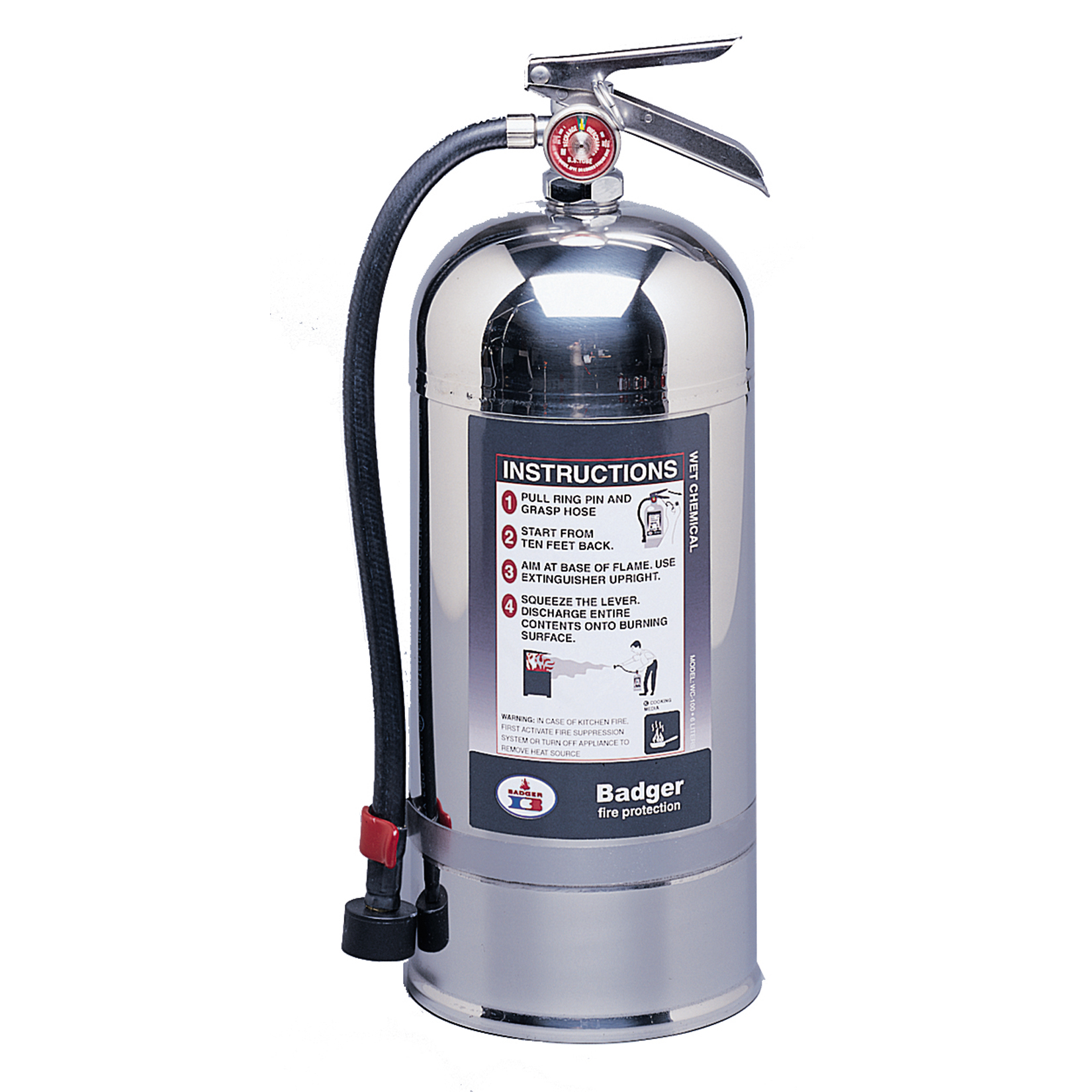

Badger Extra Class K Wet Chemical Fire Extinguisher WC-100-2 WC-100-2
Badger Extra Class K Wet Chemical Fire Extinguisher WC-100-2
WC-100-2
A class K Wet Chemical extinguishing agent. Suitable for Class A and K fires.
Badger pioneered the use of wet chemical extinguishing agents and equipment technology for commercial kitchen fire protection four decades ago. Badger’s innovative design and approach for a safe and effective way to address the various new Class K code requirements in 1997 has become the industry standard for kitchen hand portable fire extinguishers.
The 1.59 gallon (6 liter) and 2.5 gallon (9.46 liter) fire extinguisher models are simple to use and extremely effective in handling the difficult types of cooking media fire hazard situations found in today’s busy commercial kitchens.
Badger wet chemical hand portable fire extinguisher models are ideally suited to supplement commercial cooking appliance fire suppression systems for addressing tough Class K combustible kitchen cooking media fires.
-
Heavy-duty chrome plated brass valves
-
Non-metal finger guard and protective nozzle orifice seal
-
Soft 360° mist discharge stream prevents splashing
-
UL Listed—Meets DOT requirements
-
Full stainless steel cylinder, base, handle, lever and pull pin
-
Hex valve collar tightening ring for easy recharge
-
Easy-to-read two-piece nameplates
-
Suitable for use at temperatures as low as -40˚F (-40˚C)
-
Factory-filled WC-100-1 (6 liter model)
-
Six-year limited warranty
-
WC-250-1 shipped empty, with agent. Recharge after purpose.
Specifications
| MODEL / SKU: | WC-100-2 |
| PART NUMBER : | 25064 |
| WHEEL TYPE : | n/a |
| CAPACITY (lb.): | n/a |
| CAPACITY (gal): | 1.59 |
| CAPACITY (kg): | n/a |
| CAPACITY (liter): | 6 |
| UL FIRE RATING: | K |
| AGENT TYPE: | Potassium Acetate |
| CYLINDER MATERIAL: | Stainless Steel |
| kidde: | Plated Brass |
| HANDLE/LEVER MATERIAL: | Stainless Steel |
| EXPELLANT: | Nitrogen / Air |
| Operating Pressure @ 70° F: | 100 |
| TEMPERATURE RANGE (° F): | -40 to 120 |
| TEMPERATURE RANGE (° C): | -40.0 to 49 |
| AGENT FLOW RATE (lb/sec): | n/a |
| AGENT FLOW RATE (kg/sec): | n/a |
| NOM. DISCHARGE TIME (sec): | 50-55 |
| DISCHARGE RANGE (ft.): | 8.0 to 12.0 |
| DISCHARGE RANGE (m): | 2.4 to 3.7 |
| UNIT HEIGHT (in.): | 19.5 |
| UNIT HEIGHT (cm): | 49.5 |
| UNIT WIDTH (in.): | 8.75 |
| UNIT WIDTH (cm): | 22.2 |
| UNIT DEPTH (in.): | 7 |
| UNIT DEPTH (cm): | 17.8 |
| SHIPPING WEIGHT (lb.): | 15 |
| SHIPPING WEIGHT (kg): | 6.8 |
| USCG APPROVAL: | n/a |
| RECHARGE: | AC-100, P/N: 25092 |
| Warranty: | 6 years |
| Hazaard Type A: | A |
| Hazaard Type B: | n/a |
| Hazaard Type C: | n/a |
| Hazaard Type D: | n/a |
| Hazaard Type K: | K |
This information is subject to change without notice. Badger Fire Protection disclaims any liability for any errors or misinterpretations of the information contained therein. Contact Badger Fire Protection for your local distributor for assistance.
