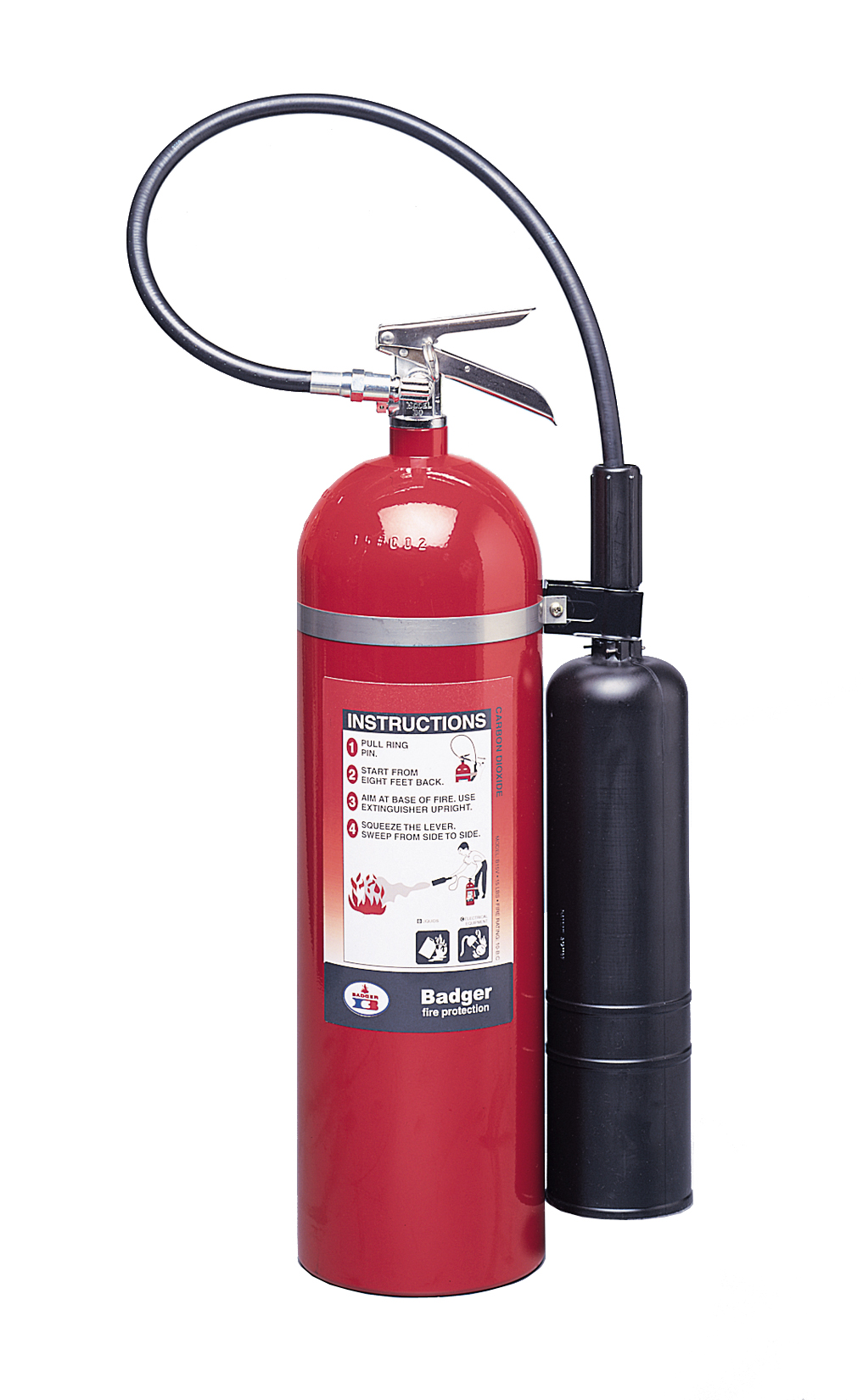

Badger Extra Carbon Dioxide Self-Expelling Fire Extinguishers B15V-1 B15V-1
Badger Extra Carbon Dioxide Self-Expelling Fire Extinguishers B15V-1
B15V-1
A clean, effective extinguishing agent for Class B and C fires.
These quality industrial fire extinguisher models are extremely versatile and ready to tackle flammable liquid and electrical fire hazards. They are ideally suited for indoor applications where delicate equipment or processes require a clean extinguishing agent.
Carbon Dioxide is an effective and clean gaseous extinguishing agent that does not leave any residue to clean up or damage equipment. These models are suitable for use on Class B and C fires.
-
Heavy-duty chrome plated brass valve
-
Stainless steel handle, lever and hose band
-
Aluminum internal siphon tube
-
Six year warranty
-
Five year periodic hydrostatic test interval
-
UL Listed and USCG Approved—Meets D.O.T.requirements
-
Easy-to-read two-piece nameplate
-
5, 10, 15 and 20 pound models available
-
DOT-3AL and TCM-3ALM specification cylinders
-
Cylinders marked “Non-Shat” per Federal specification RR-C-901E
-
5# Models now also feature Insulated Discharge Horn for Added Operator Safety
Specifications
| MODEL / SKU: | B15V-1 |
| PART NUMBER : | 21103 |
| WHEEL TYPE : | n/a |
| CAPACITY (lb.): | 15 |
| CAPACITY (gal): | n/a |
| CAPACITY (kg): | 6.8 |
| CAPACITY (liter): | n/a |
| UL FIRE RATING: | 10-B:C |
| AGENT TYPE: | Carbon Dioxide |
| CYLINDER MATERIAL: | Aluminum |
| kidde: | Plated Brass |
| HANDLE/LEVER MATERIAL: | Stainless Steel |
| EXPELLANT: | n/a |
| Operating Pressure @ 70° F: | 850 |
| TEMPERATURE RANGE (° F): | -22 to 120 |
| TEMPERATURE RANGE (° C): | -30 to 48.9 |
| AGENT FLOW RATE (lb/sec): | n/a |
| AGENT FLOW RATE (kg/sec): | n/a |
| NOM. DISCHARGE TIME (sec): | 14 |
| DISCHARGE RANGE (ft.): | 3.0 to 8.0 |
| DISCHARGE RANGE (m): | 0.9 to 2.4 |
| UNIT HEIGHT (in.): | 26 |
| UNIT HEIGHT (cm): | 66 |
| UNIT WIDTH (in.): | 10.87 |
| UNIT WIDTH (cm): | 27.6 |
| UNIT DEPTH (in.): | 6.87 |
| UNIT DEPTH (cm): | 17.46 |
| SHIPPING WEIGHT (lb.): | 40 |
| SHIPPING WEIGHT (kg): | 18.1 |
| USCG APPROVAL: | Type B:C Size-II |
| RECHARGE: | |
| Warranty: | 6 years |
| Hazaard Type A: | n/a |
| Hazaard Type B: | B |
| Hazaard Type C: | C |
| Hazaard Type D: | n/a |
| Hazaard Type K: | n/a |
This information is subject to change without notice. Badger Fire Protection disclaims any liability for any errors or misinterpretations of the information contained therein. Contact Badger Fire Protection for your local distributor for assistance.
